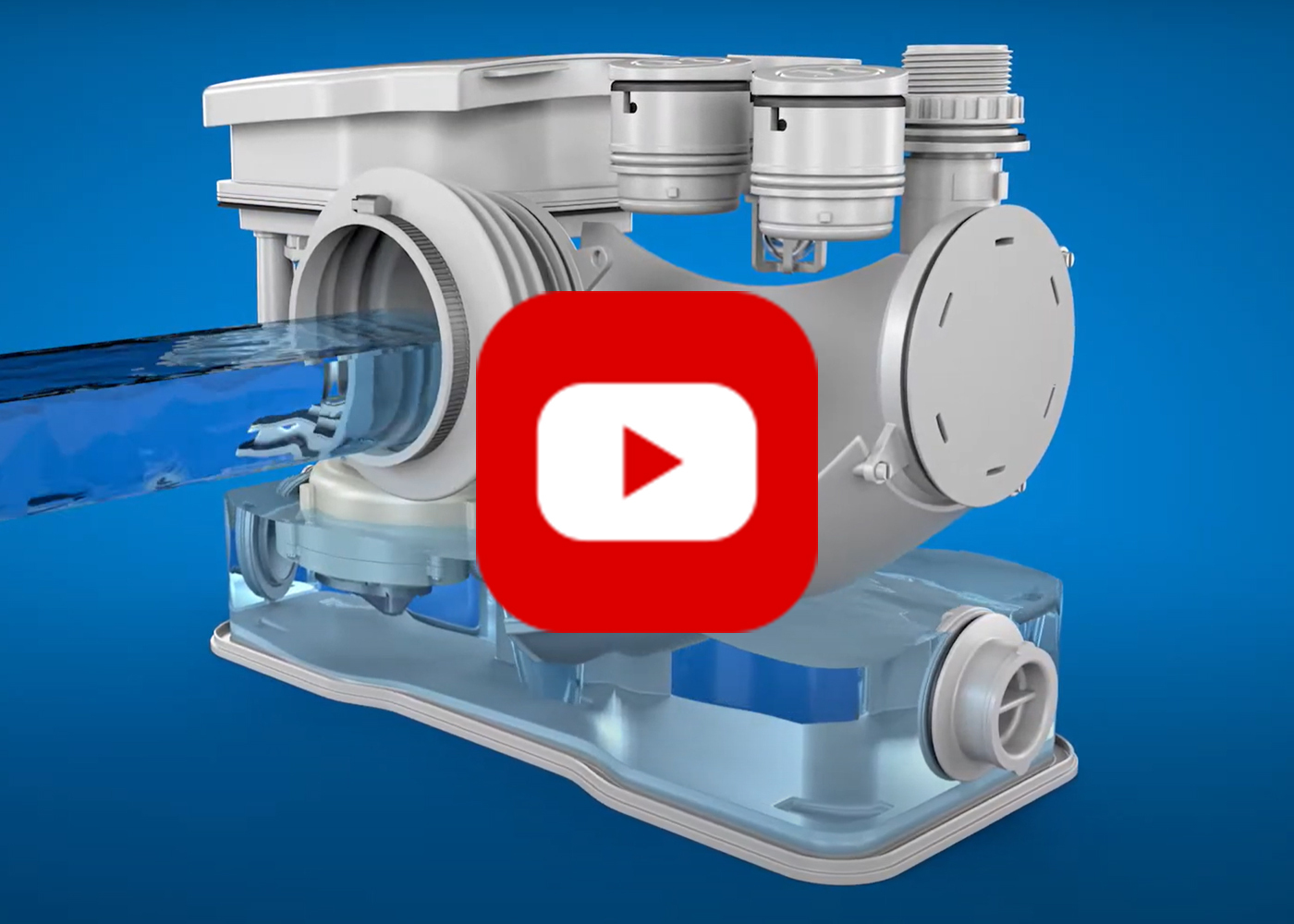

Gerios small lifting unit

Model
- optimised high-performance cutting system made of corrosion-resistant special steel 1.4112 with particular high hardness, wear resistance and cutting performance
- tank made of ABS for direct connection to a free-standing toilet with minimum inlet height
- tank ventilation via activate carbon filter; optional ventilation via DN 40 pipe
- robust, wet-installed pump
- integrated alarm signal in case of malfunction
- pressure outlet 11/4" FPT with integrated non-return valve on top; outlet horizontal or vertical (90° bend)
- max. medium temperature 40°C - short-term max. 60°C protection grade IP 68 - fully submersible
Application

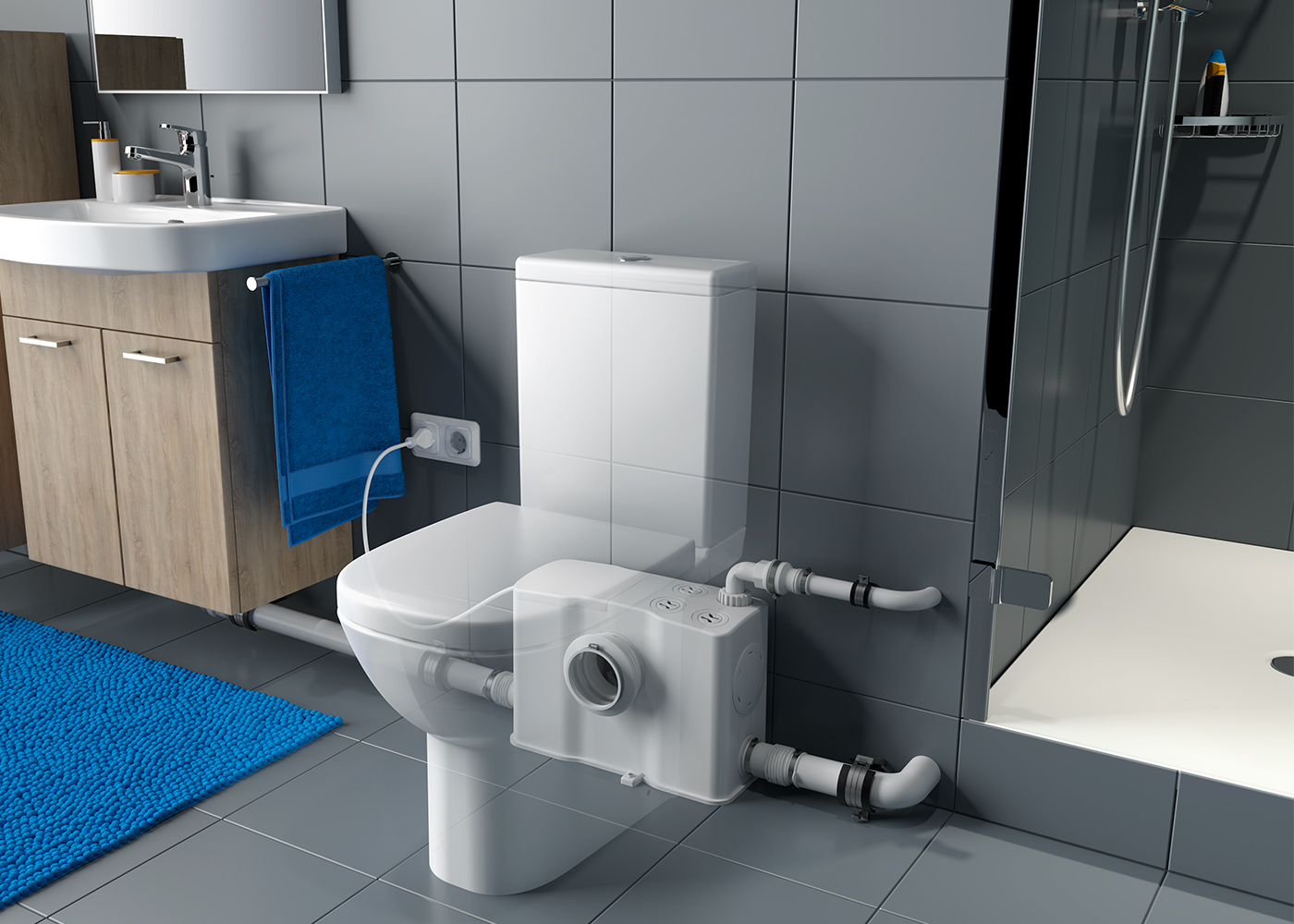

- single toilet lifting unit for limited use in private areas below the backflow level, e.g. basements or refurbishments
- connection of one free-standing or wall-mounted toilet, sink, shower and bidet
Scope of delivery
- plug-and-play with 1.5 m power cable and safety plug
- accessories: buoyancy protection, inlet nozzle DN 40, outlet connection 11/4" MPT/FPT, Ø32 and Ø40 connection
- small parts and fastening materials
Article number

20559

Power supply

230 V

Frequency

50 Hz

Power P1

560 W

Power P2

350 W

Nominal current

2,5 A

Drive

2950 rpm

C

16 µF

Max. temperature

40 °C

Max. flow rate

7,5 m³/h

Head up to

11 m

Free passage

5 mm

Min. switch-on point

100 mm

Residual water level

50 mm

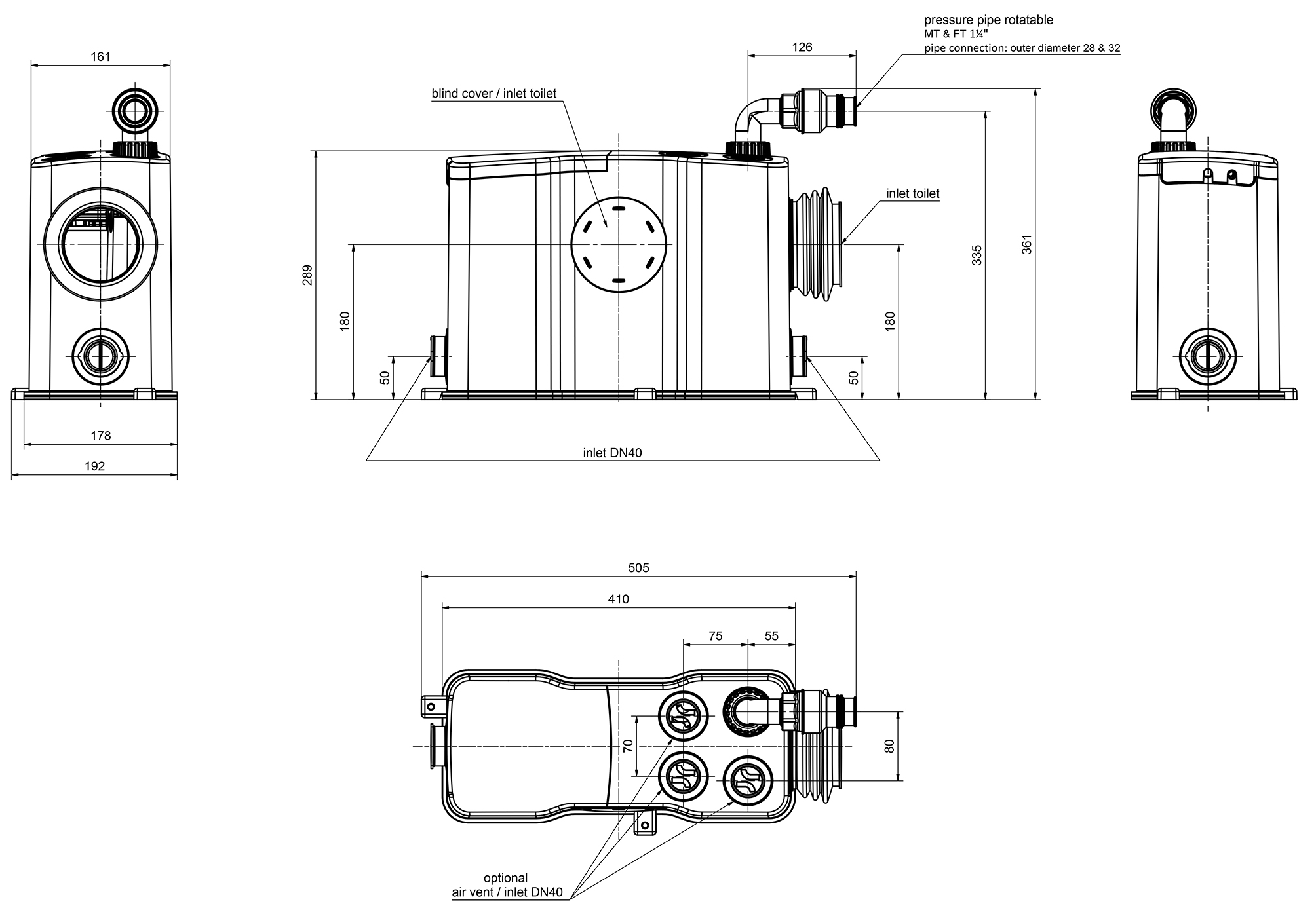

Width

178 mm

Length

435 mm

P-dimensions (WxHxL)

200 mm x 335 mm x 480 mm

features

pressure switch (pneum. hydr.)
Product name Article number

humidity sensor 22346

	Product name	Article number
	humidity sensor	22346
