USS 3000

Model
- mobile diaphragm pump with dry-run protection
- suction head up to 6,5 m
- universally applicable with exchangeable suction nozzles
- mono-phase motor with 10 m power cable
- oil-resistant diaphragm, suction hose and discharge hose as standard for USS 4000
Application
- cleaning of reservoirs
- abolishment of disasters or floodings
- cleaning of swimming pools or pond systems
- pumping of abrasive media
- residual drainage of containers
Scope of delivery
- pre-assembled ready for connection with 10 m power cable and plug
- 3,5 m 1" suction hose and discharge hose
- 3 suction nozzles
- 3 stainless steel suction pipes 0,5 m
Article number

15639

Power supply

230 V

Frequency

50 Hz

Power P1

270 W

Power P2

150 W

Nominal current

1,2 A

C

12 µF

Max. temperature

40 °C

Max. flow rate

3,0 m³/h

Head up to

12,0 m

Free passage

15 mm

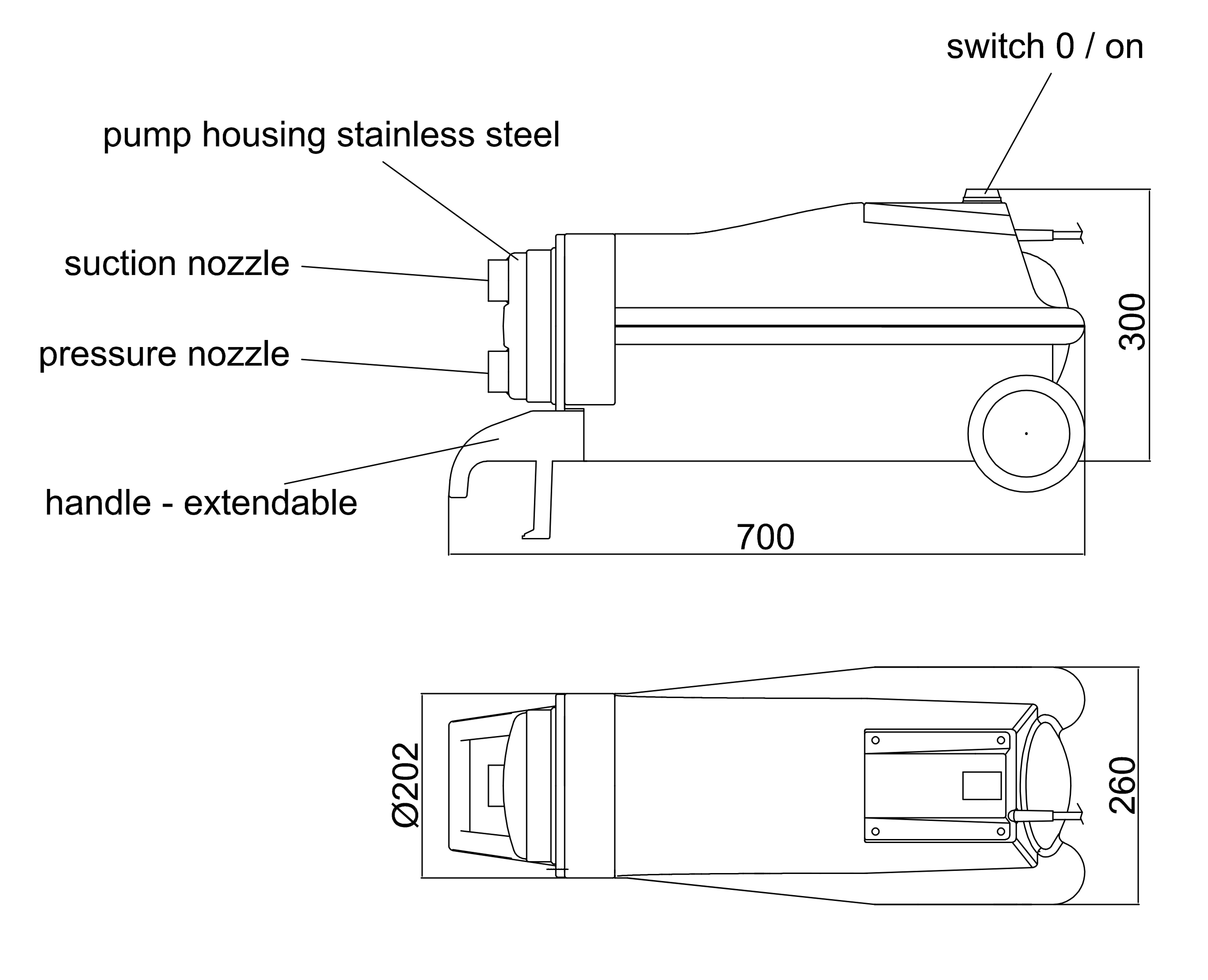

Width

260 mm

Length

700 mm

P-dimensions (WxHxL)

295 mm x 570 mm x 780 mm
