CPS 35-4 B 400V

Model
- Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump
- High efficiency
- Suction and pressure connectors, internal thread (1“ - 1¼“)
- CPS SM with ON/OFF-switch
- CPS GG / SM: Grey-cast iron suction and discharge case
- CPS B: Suction and discharge case made of α-brass resistant to dezincification
- Impellers made of fibre-glass reinforced Noryl®
Application
- Domestic water supply
- Rainwater utilization
- Pressure boost
- Irrigation
- For clear water without aggressive and abrasive components
Scope of delivery
- Completely wired including mains cable H07 RNF, 1.5 m long, with plug
Article number

20223

Power supply

3~230/3~400 V

Frequency

50 Hz

Power P1

1.800 W

Nominal current

5,6/3,2 A

Drive

2850 rpm

Max. temperature

40 °C

Max. flow rate

10,2 m³/h

Head up to

50,0 m

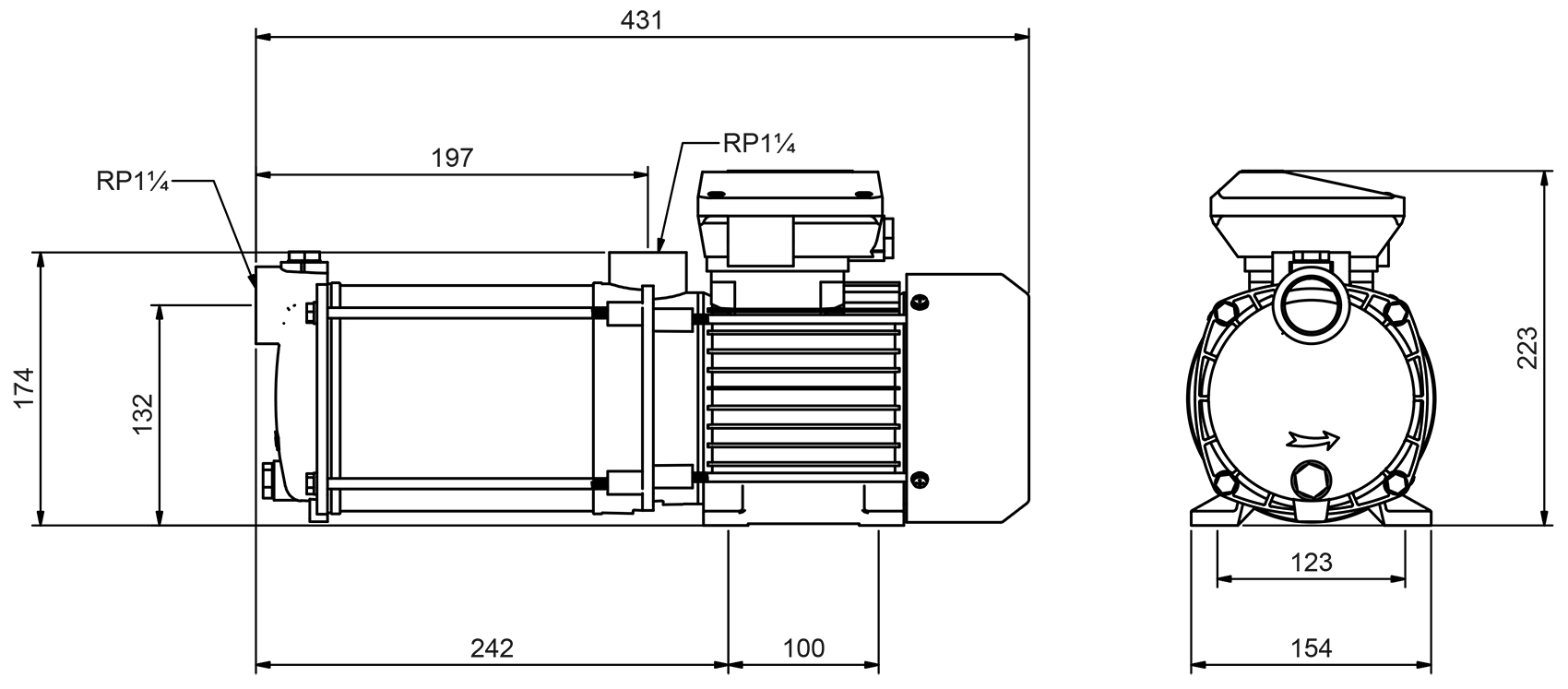

Width

154 mm

Length

431 mm

P-dimensions (WxHxL)

195 mm x 245 mm x 450 mm
