W 80

Model
- polyethylene container with 350 litres capacity and up to 175 litres switching volume
- vortex pump with large solids handling
- mechanical seal and shaft seal with intermediate oil chamber
- pump housing with cast-on outlet bend DN 100
- lateral inlet with loose-type flange DN 100
- additional connection 1 ½“ for manual diaphragm pump
- air vent with loose-type flange DN 100 (Ø 110 mm)
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 57 - temporarly submersible
Application
- drainage of sewage from apartment buildings or industrial enterprises etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
- incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor Installation
- Small compressor set with bubbler system
- Attention! Non-return valve, gate valve and further junction fittings optional (see accessories)
Article number

10537

Power supply

400 V

Frequency

50 Hz

Power P1

4.000 W

Power P2

3.000 W

Nominal current

6,9 A

Drive

1400 rpm

Max. temperature

55 °C

Max. flow rate

60,0 m³/h

Head up to

11,0 m

Free passage

80 mm

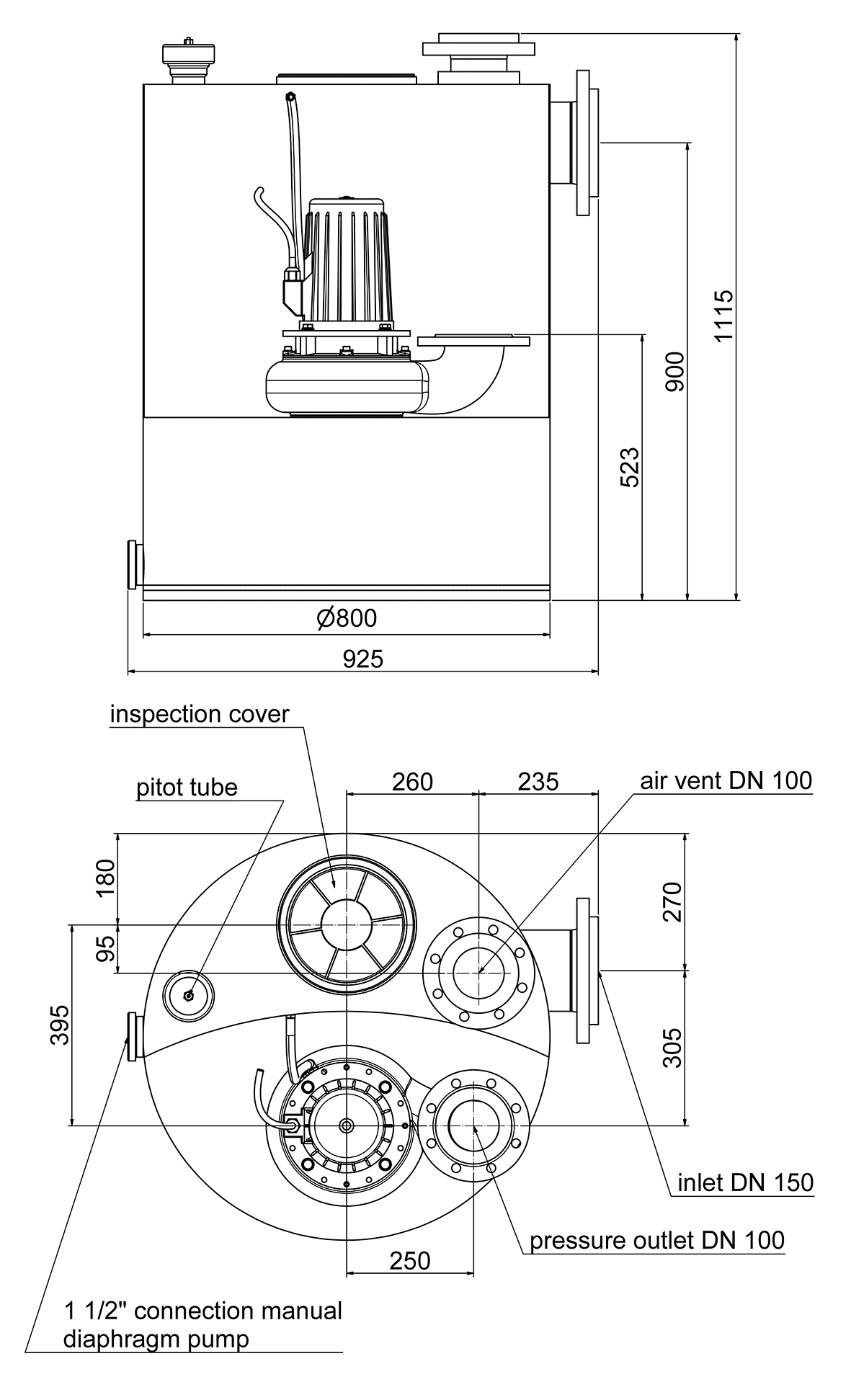

Width

800 mm

Diameter

800 mm

Length

925 mm

P-dimensions (WxHxL)

800 mm x 1259 mm x 1200 mm

features

with pneumatic pump control for single pumps
