ZM 280

Model
- submersible waste water pump, made of corrosion- and shock-resistant polypropylene and high-grade stainless steel
- motor winding with thermal winding protection
- mechanical seal and additional shaft seal
- stainless steel motor shaft and motor housing
- jacket cooling
- vertical pressure outlet 1“
- version 'A' with mounted float switch
- version 'KS' with mounted compact float switch (fits into pipes with an inner diameter larger than 250 mm)
- protection grade IP 68 – fully submersible
Application
- pumping of clear water and waste water
- portable pump for emergency drainage
Scope of delivery
- pump with 10 m power cable and plug
Article number

13179

Power supply

230 V

Frequency

50 Hz

Power P1

300 W

Power P2

160 W

Nominal current

1,3 A

Drive

2800 rpm

C

5 µF

Max. temperature

40 °C

Max. flow rate

7,0 m³/h

Head up to

6,0 m

Free passage

10 mm

Min. switch-on point

40 mm

Residual water level

20 mm

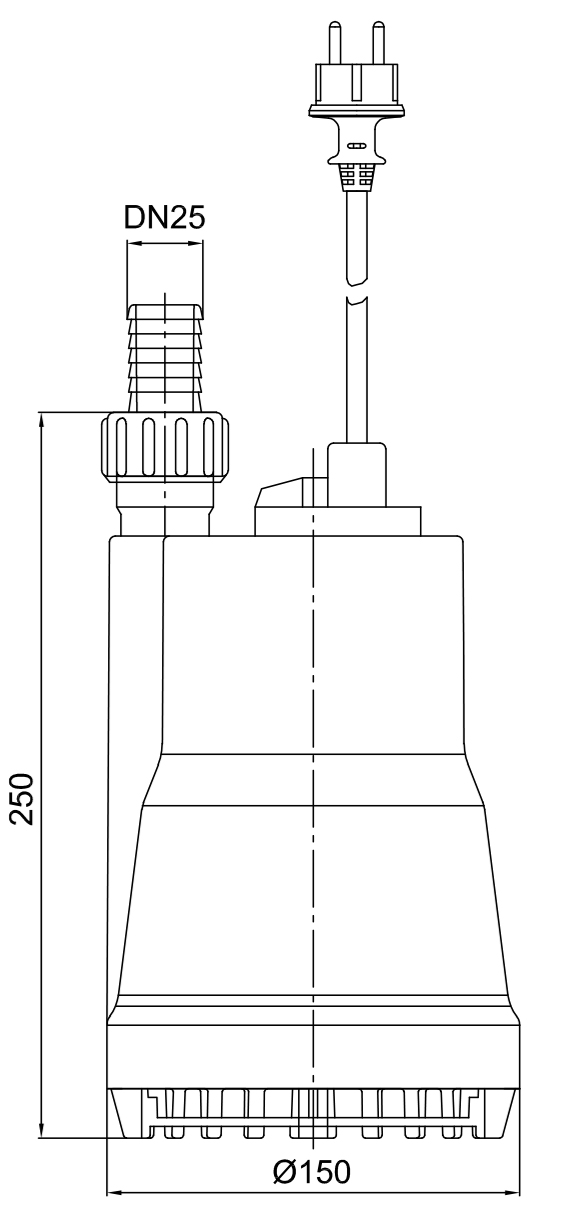

Diameter

150 mm

P-dimensions (WxHxL)

186 mm x 349 mm x 186 mm

features

without float switch
