TM 33

Model
- oil-filled asynchronous motor within stainless steel housing with thermal contact
- jacket cooling for continuous duty horizontal / emerged
- sealed with high-grade mechanical seal
- brass bearing shield
- stainless steel pump housing and motor shaft
- modern, powerful pump hydraulics with impellers and guide wheels made of wear-resistant plastic
- TM FU with 100 Hz motor and frequency converter for constant water pressure
Application
- water pumping from deep wells and rainwater cisterns
- domestic water supply, garden irrigation
Scope of delivery
- pump with 20 m power cable and plug with integrated capacitor, power switch and motor protection
- TM FU with 20 m power cable, pressure controller for constant water pressure and 1 m power cable with plug
- Attention! Non-return valve is not included in scope of delivery
- TM FU with enclosed 1" non-return valve
Article number

11981

Power supply

230 V

Frequency

50 Hz

Power P1

1.130 W

Power P2

640 W

Nominal current

5,2 A

Drive

2800 rpm

C

20 µF

Max. temperature

35 °C

Max. flow rate

4,5 m³/h

Head up to

65,0 m

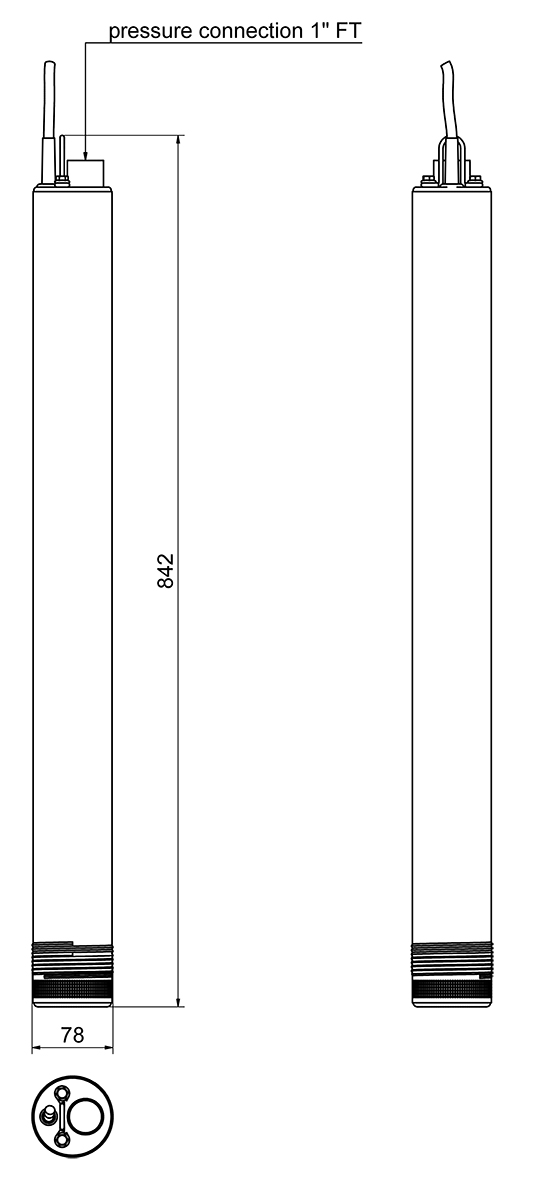

Diameter

78 mm

Length

845 mm

P-dimensions (WxHxL)

260 mm x 105 mm x 1010 mm
