CPS 15-4MB/Kit 05 OPTIMATIC

Model
- Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump
- Kit 05 Optimatic: Suction socket 1", pressure socket 1"
- Kit 05 Optimatic: When one of the consumers gets opened, the pump automatically switches on. When all the consumers are closed, the pump is automatically switched off. Additional dry-run protection and auto-reset-function
- Suction and discharge case made of alpha brass
- Guide wheels made of special Noryl®
- O-rings made of NBR
- Case, Kit-05 PRO, PPO recyclable
Application
- Complete water supply package for:
- Rainwater utilization plants
- Irrigation
- Pressure boost
- Clear water without aggressive and abrasive components
Article number

18742

Power supply

230 V

Frequency

50 Hz

Power P1

900 W

Nominal current

4,0 A

Drive

2850 rpm

C

16 µF

Max. temperature

40 °C

Max. flow rate

4,0 m³/h

Head up to

40,0 m

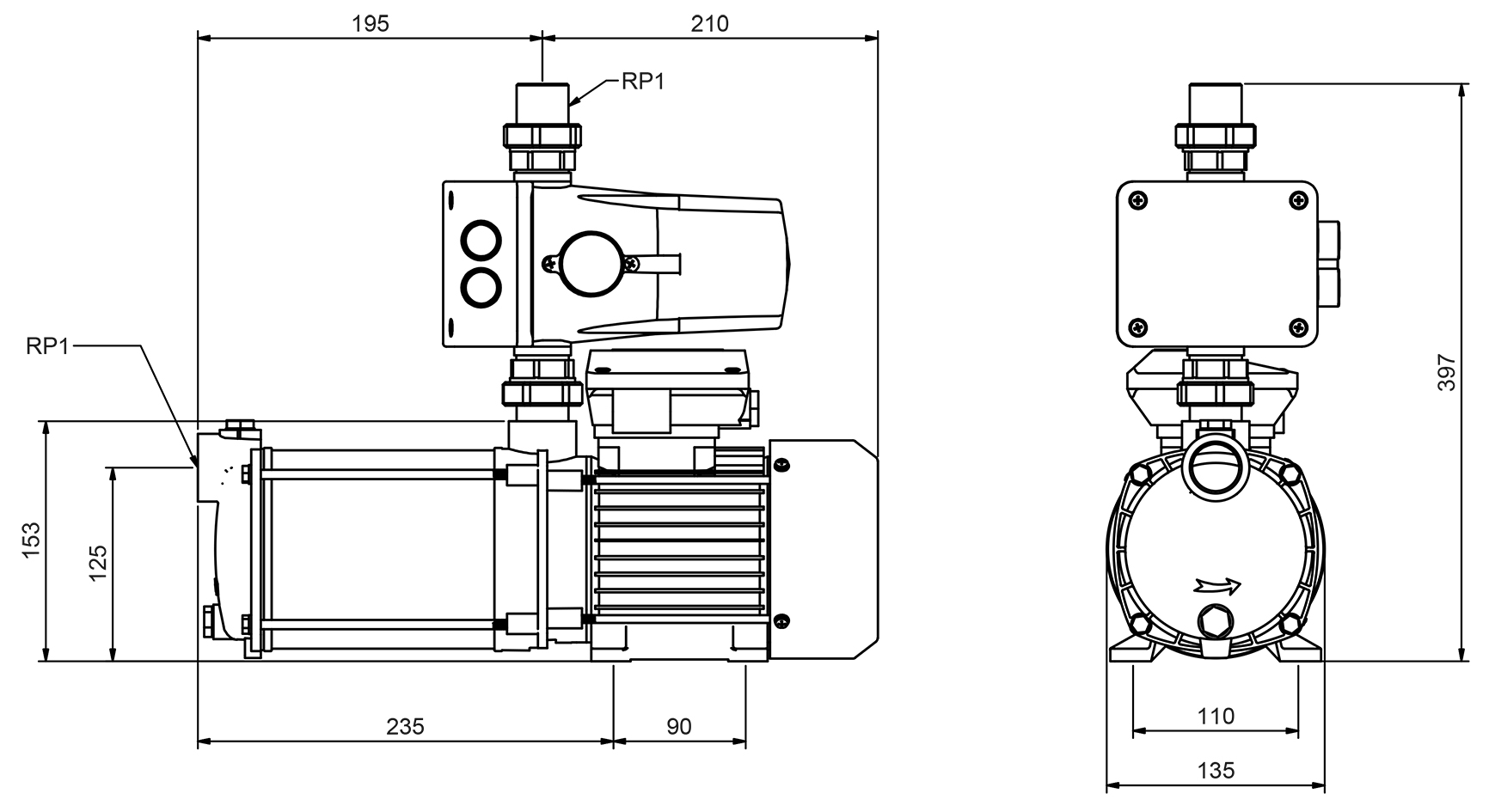

Width

135 mm

Length

405 mm

P-dimensions (WxHxL)

470 mm x 250 mm x 450 mm

features

with electronic pressure switch
