S-ZPK 30 A

Model
- for use behind water softening systems and for calorific value condensate
- high-quality, silicon carbide mechanical seal, stainless steel motor housing (1.4404), stainless steelmotor shaft
- motor winding with thermal winding protection
- mechanical seal and additional shaft seal
- horizontal pressure outlet 1 ¼” MPT
- version 'A' with mounted float switch
- version 'KS' with mounted compact float switch (fits into pipes with an inner diameter larger than 250 mm)
- protection grade IP 68 – fully submersible
Application
- drainage of slightly acidic condensate, aggressive or salty media (max. 15% salt content)
- lifting of domestic faecal-free waste water (operation temperature 40°C / short-term up to 90°C)
Scope of delivery
- pump with 10 m power cable and plug
- 90° hose connecting bend (ZPK 30: DN 25; ZPK 35 and ZPK 40: DN 32)
Article number

13030

Power supply

230 V

Frequency

50 Hz

Power P1

300 W

Power P2

130 W

Nominal current

1,3 A

Drive

2800 rpm

C

5 µF

Max. temperature

40 (short-term 90) °C

Max. flow rate

7,0 m³/h

Head up to

7,5 m

Free passage

10 mm

Min. switch-on point

120 mm

Residual water level

25 mm

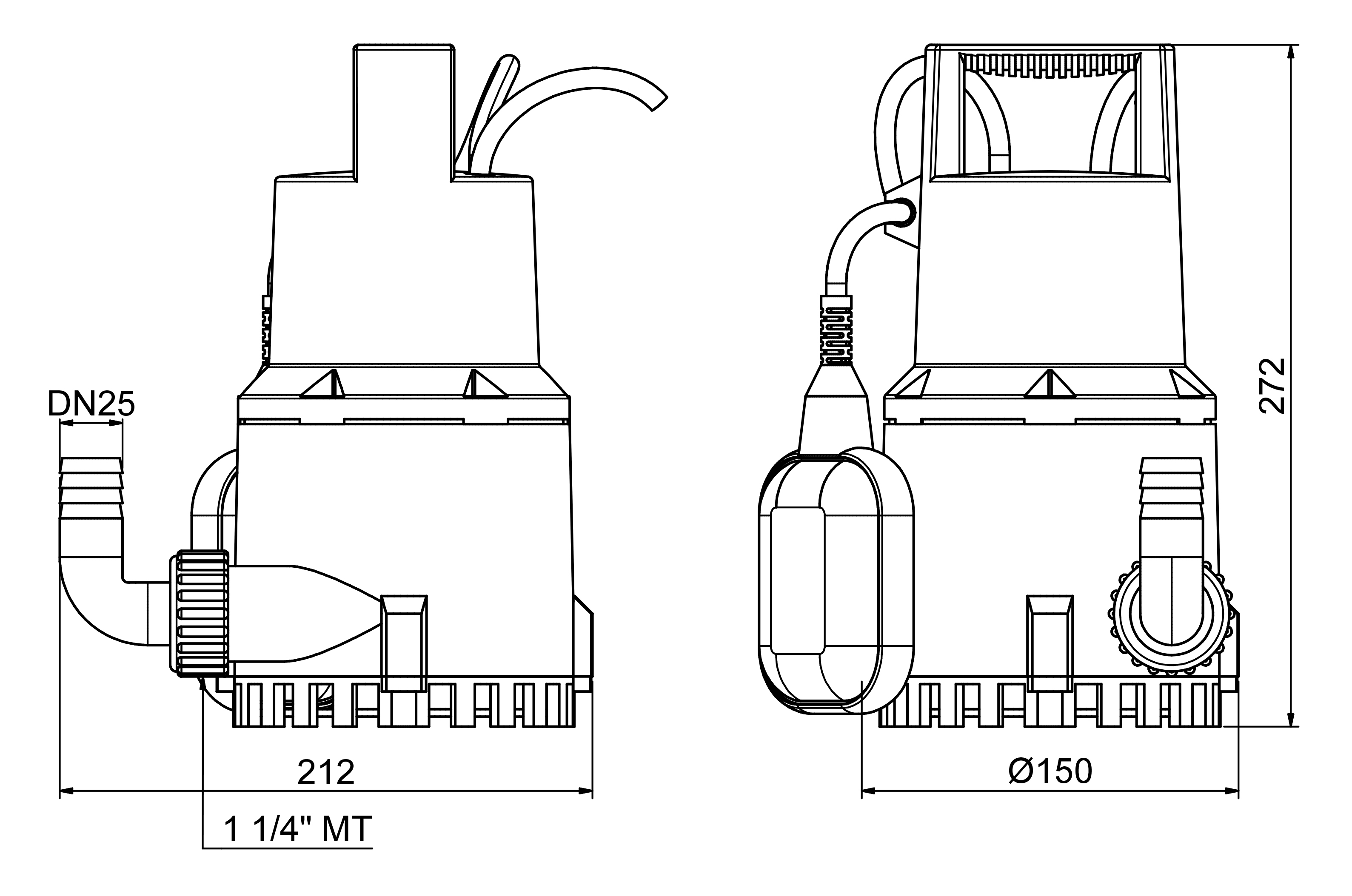

Diameter

150 mm

P-dimensions (WxHxL)

186 mm x 349 mm x 186 mm

features

with float switch
